Weight Center Gravity Measuring Aircraft Ground Support Equipment

Model Number : TCS-4500

MOQ : 1 EA

Payment Terms : T/T

Contact Now

Aircraft weight parameters are very important, and many performance configurations and center of gravity calculations are inseparable from weight parameters.

Weight Center Gravity Measuring Aircraft Ground Support Equipment

The aircraft is required to be weighed regularly, and the empty weight and center of gravity position are re-measured for trim. The aircraft weighing instrument measures the weight of the aircraft through the ground scale, and sends the weighing data to the computer, and calculates the total weight and center of gravity of the aircraft directly through the software. The aircraft weighing instrument will provide the necessary weight precision for all aircraft models to ensure the reliability of the readings and to accurately calculate the aircraft's empty weight and center of gravity position.

performance parameter

1, Input power supply: 220VAC±10% (50Hz±10%)
2, Platform size: 500mm*400mm*100mm
3, Range: front scale, left scale, right scale are 4000lb
4, System accuracy is better than 0.1%FS
5, Overload capacity: Safe overload 125%, limit overload 150%
6, With kilogram and pound two display mode, display mode can be switched
7, Signal transmission mode: wireless mode
8, Wireless transmission distance: 50M
9, The use of temperature: -30℃ to 50℃ 10
10, Service life: 10 years

Quality Weight Center Gravity Measuring Aircraft Ground Support Equipment wholesale

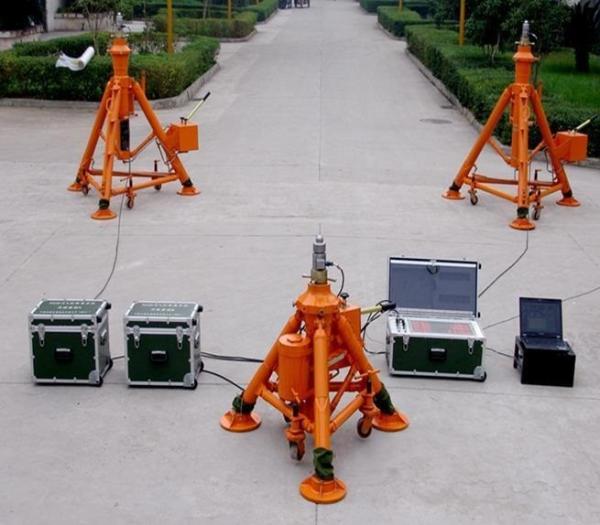

Weight Center Gravity Measuring Aircraft Ground Support Equipment Images
